Automatic Bottled 5 Gallon Water Filling Equipment
Share this:
Product Details
Full Automatic Barrel Production Line

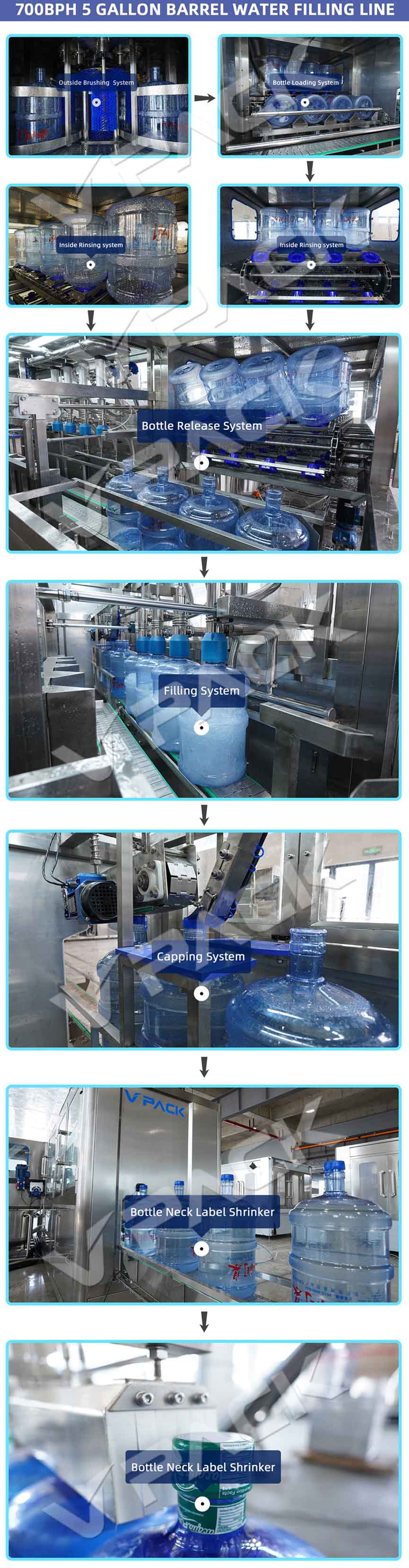

The filling line special for 3-5 gallons barreled drinking water,with type of QGF-100,QGF-240,QGF-300,QGF-450,QGF-600,QGF-700,QGF-900,QGF-1200.It integrates bottle washing,filling and capping into one unit.In order to chineve the purpose of washing and sterilizing.The washing machine uses multi-washing liquid spray.This thimerosal can be used circularly.The capping machine can automatic.This line equips with water spraying device in order to ensure those caps sterile and clean.It also can automatic carry out barrel.Washing,sterilizing,filling capping,counting and products discharging.With complete fuction,modern design and high degree of automation.It is new kind of barreled water auto-producing line,which integrates mechanism,electricity and pneumatic technologies together.
Main Features
This production line is an automatic barrel production line for drinking water of 3-5gallon. Meanwhile, it is also suitable to produce barrel wine, vinegar, medicine and so on. This production line is adopted sufficiently tech-knowledge from overseas’ drinking water equipment and plus our elaborately design due to our nation tradition to work out. So it has full functions, low energy consumption, low investment, and higher and fast effecting characteristic. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.QGF-900 is an automatic barrel production line for drinking water of 3-5gallon. Meanwhile, it is also suitable to produce barrel wine, vinegar, medicine and so on. This production line is adopted sufficiently tech-knowledge from overseas’ drinking water equipment and plus our elaborately design due to our nation tradition to work out. So it has full functions, low energy consumption, low investment, and higher and fast effecting characteristic. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.
Model
QGF-100
QGF-240
QGF-300
QGF-450
QGF-600
QGF-900
QGF-1200
Filling heads
1
2
2
3
4
6
12
Volume(Gallon)
3&5
3&5
3&5
3&5
3&5
3&5
3&5
Barrel size(mm)
φ270*490
φ270*490
φ270*490
φ270*490
φ270*490
φ270*490
φ270*490
Capacity(b/h)
100
240
300
450
600
900
1200
Gas pressure
(Mpa)
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.6
0.6
0.6
Gas consumption
(m³/min)
0.37
0.37
0.6
0.8
1
1.5
1.8
Motor power(kw)
1.38
1.75
3.8
3.8
7.5
9.8
13.5
Weight(kg)
680
800
1500
2100
3000
3500
4500

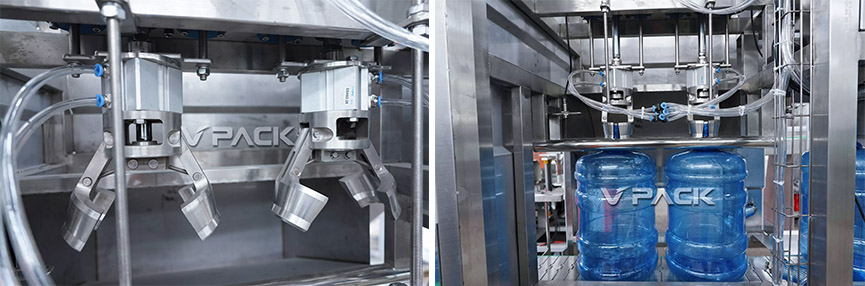

Decapping machine
Automatic cap remover machine is used to remove 5 gallon bottle cap ,easy operation and maintenance. 1.Simple structure in linear type ,easy in installation and maintation. 2.SUS304 material frame. 3.Need euqipped with air compressor to provide compressor air . 4.Capacity 100-2500caps per hour is optional.

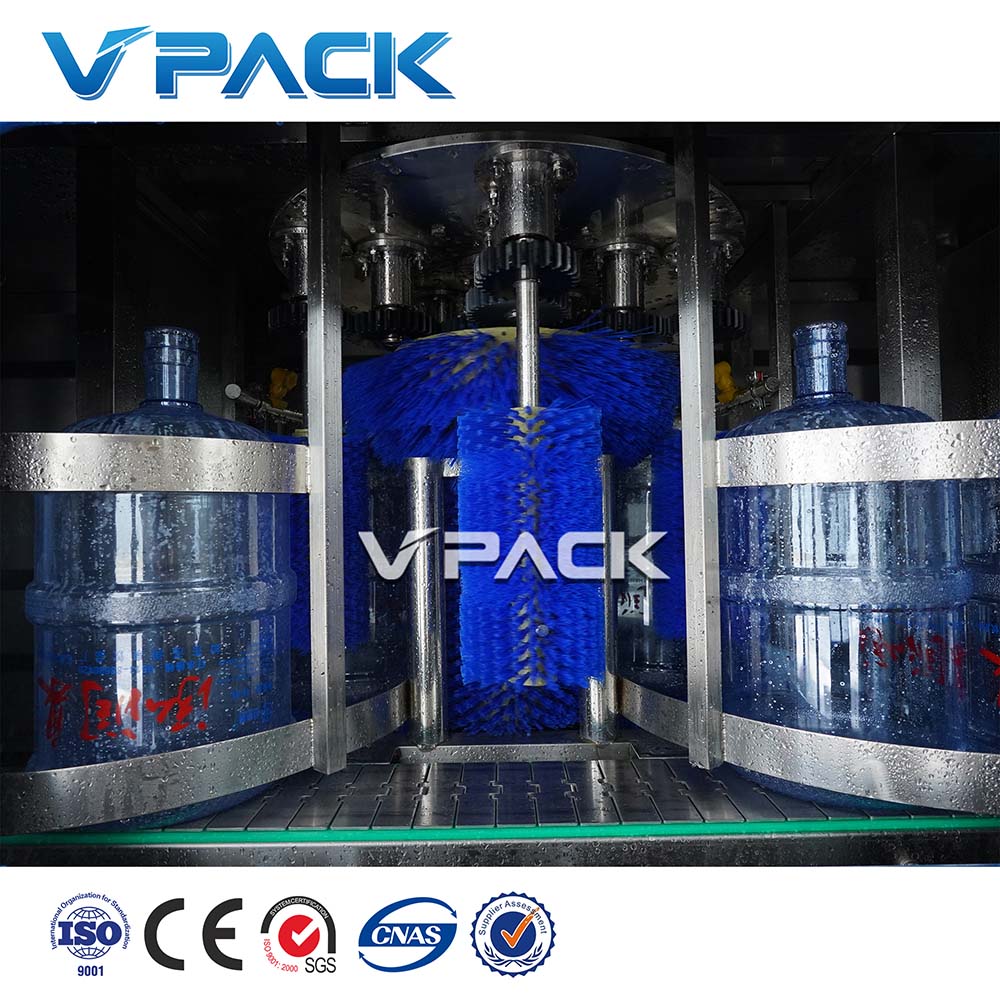

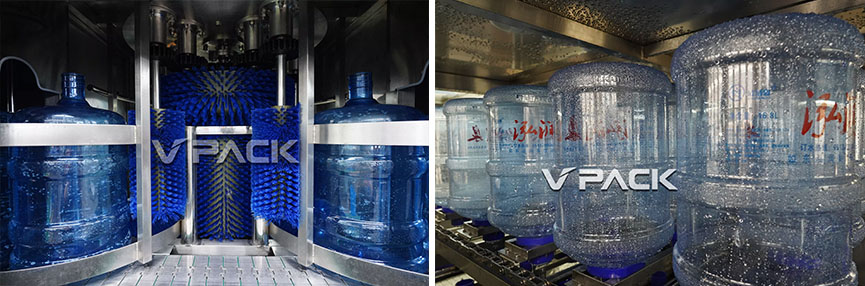

Outside Washing Parts
Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing.

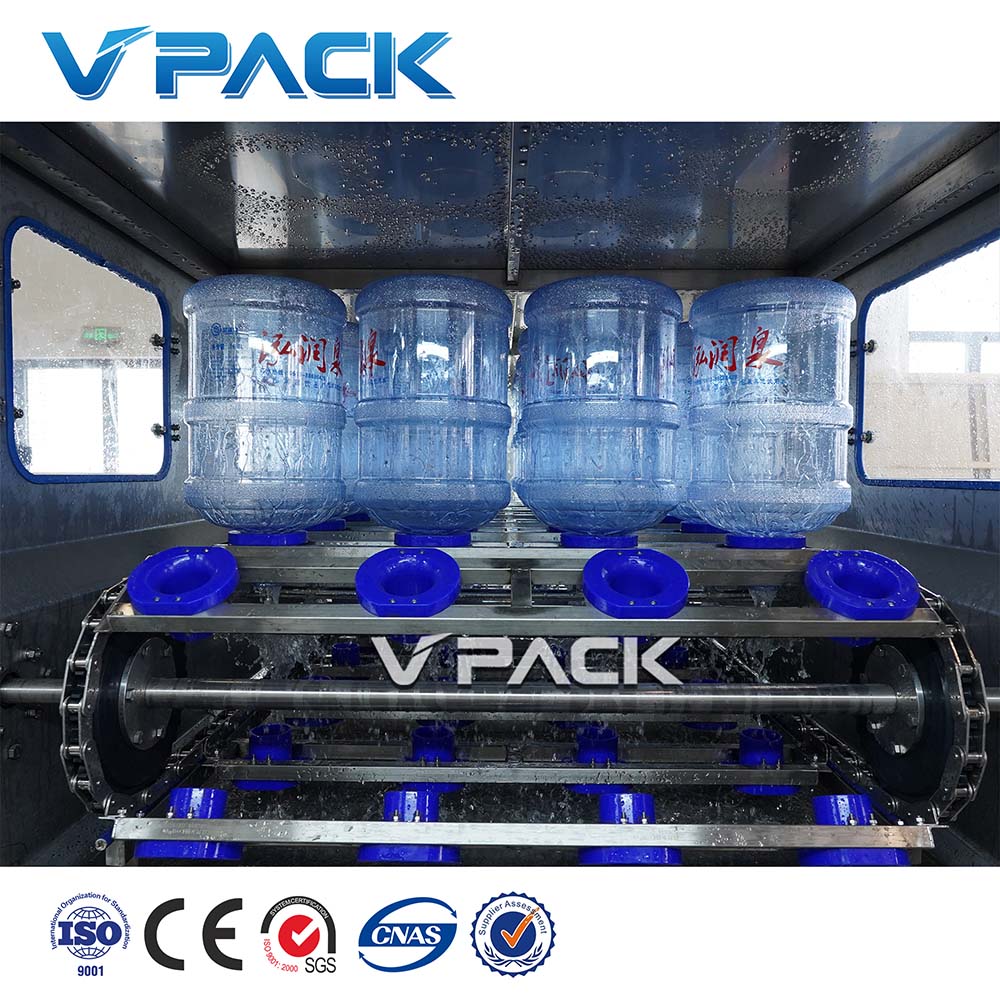

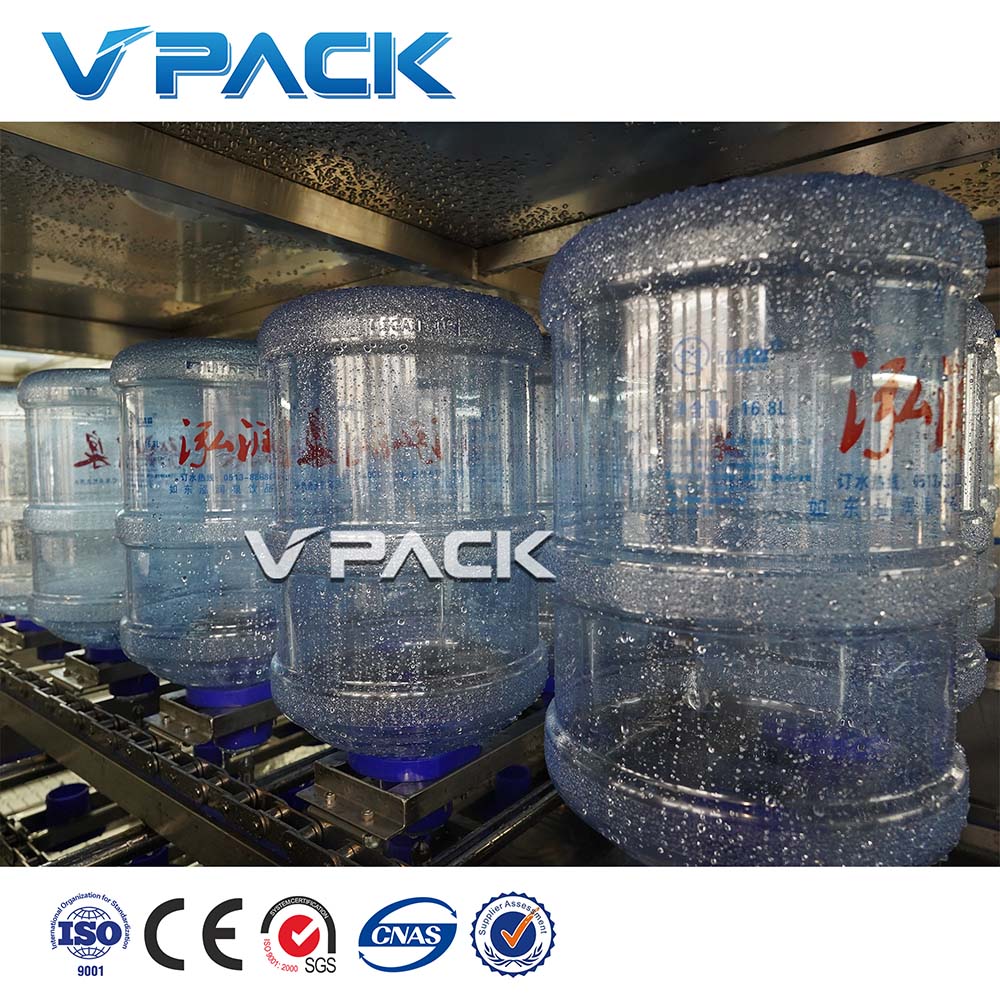

Inside Washing Parts
Using three steps to make the barrel inside clean. Hot alkali-----Disinfectant liquid-----Pure water The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.

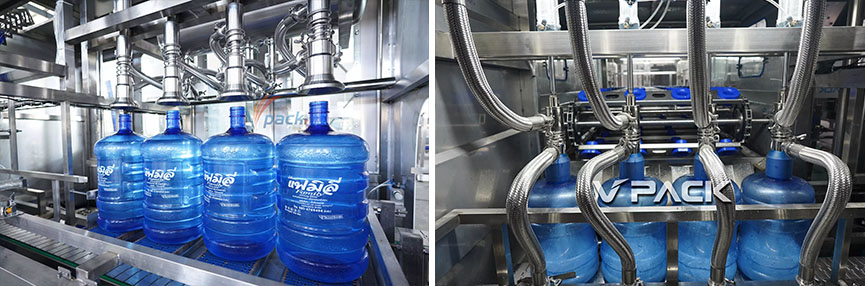

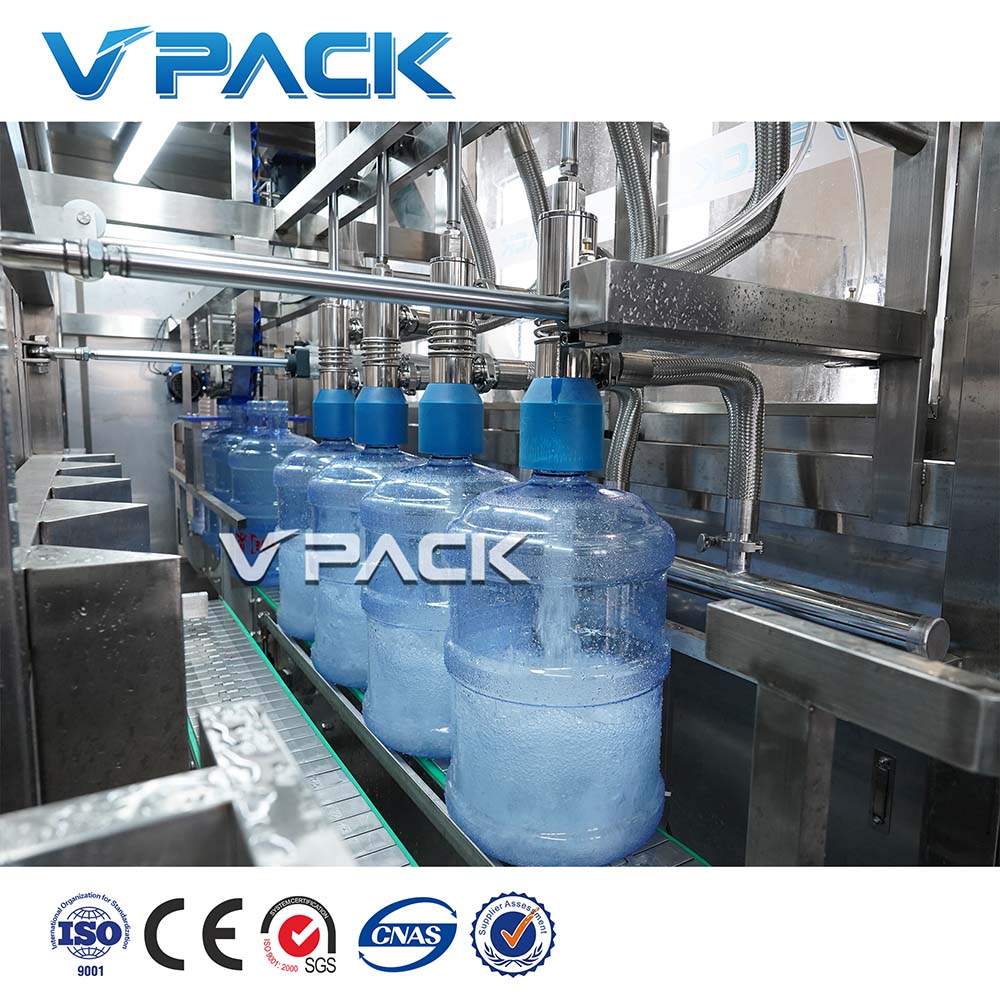

Filling parts
1.Uploading and dropping barrels changed from 45 degree to translatory which is more stable. 2.Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.

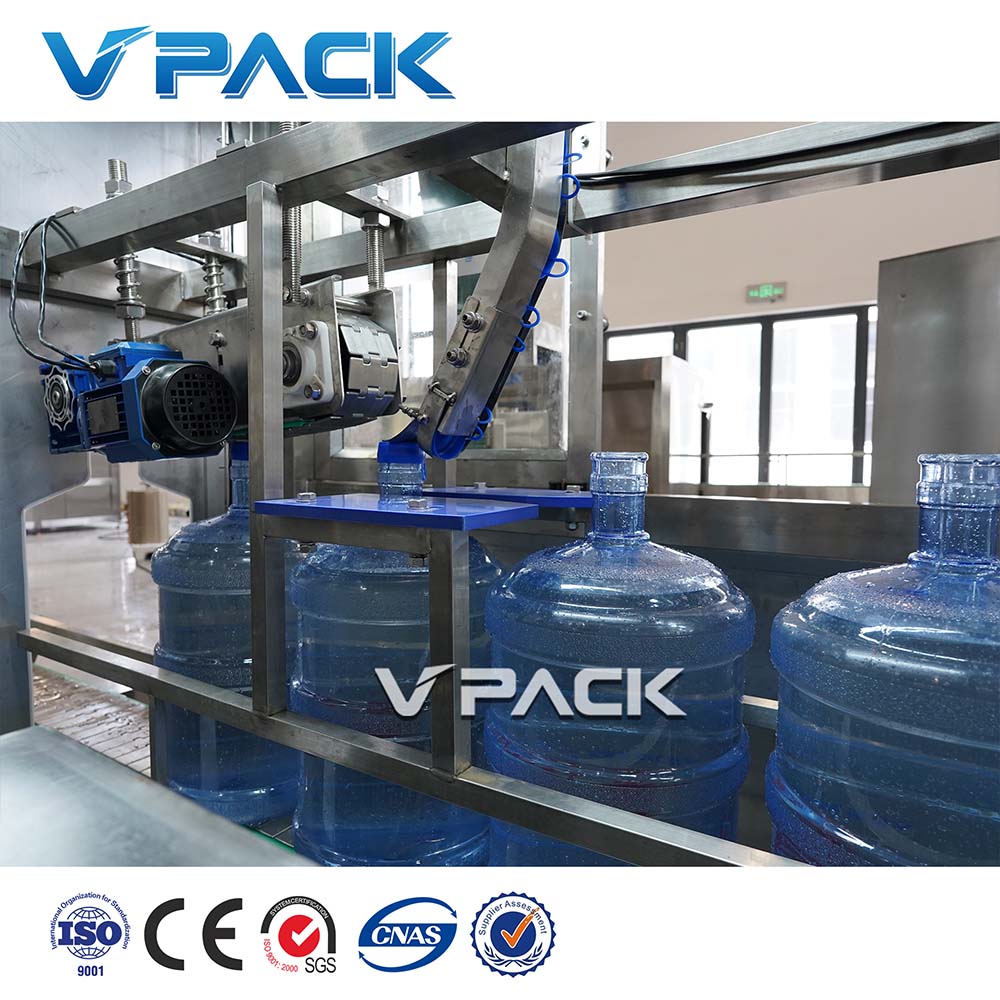

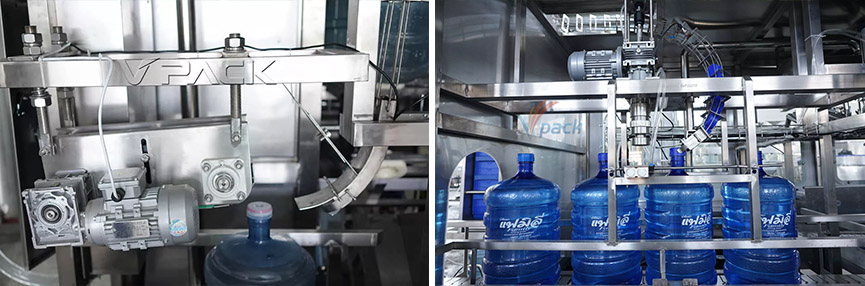

Capping parts
1.Liquid level difference is controlled in 1cm.
2.Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
