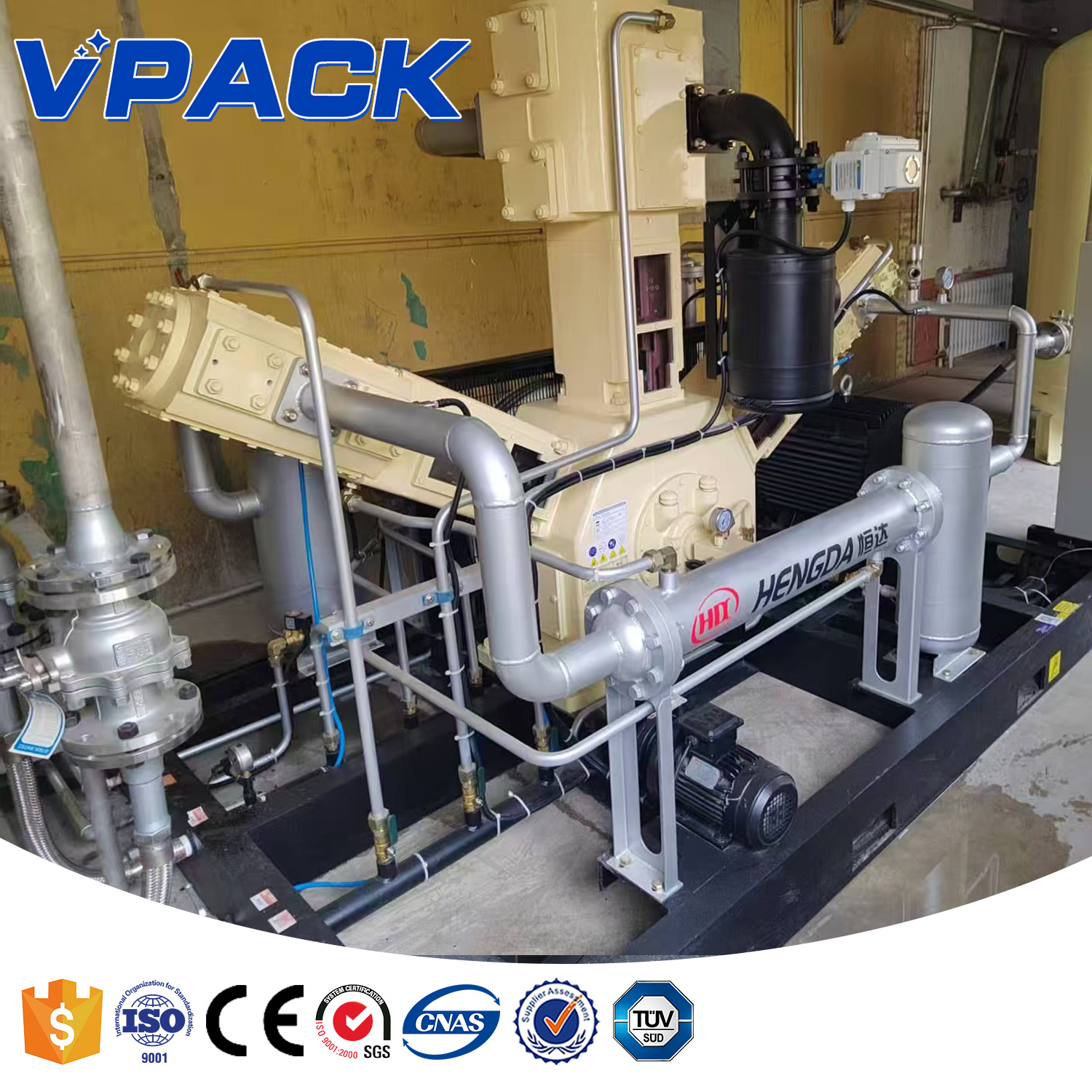

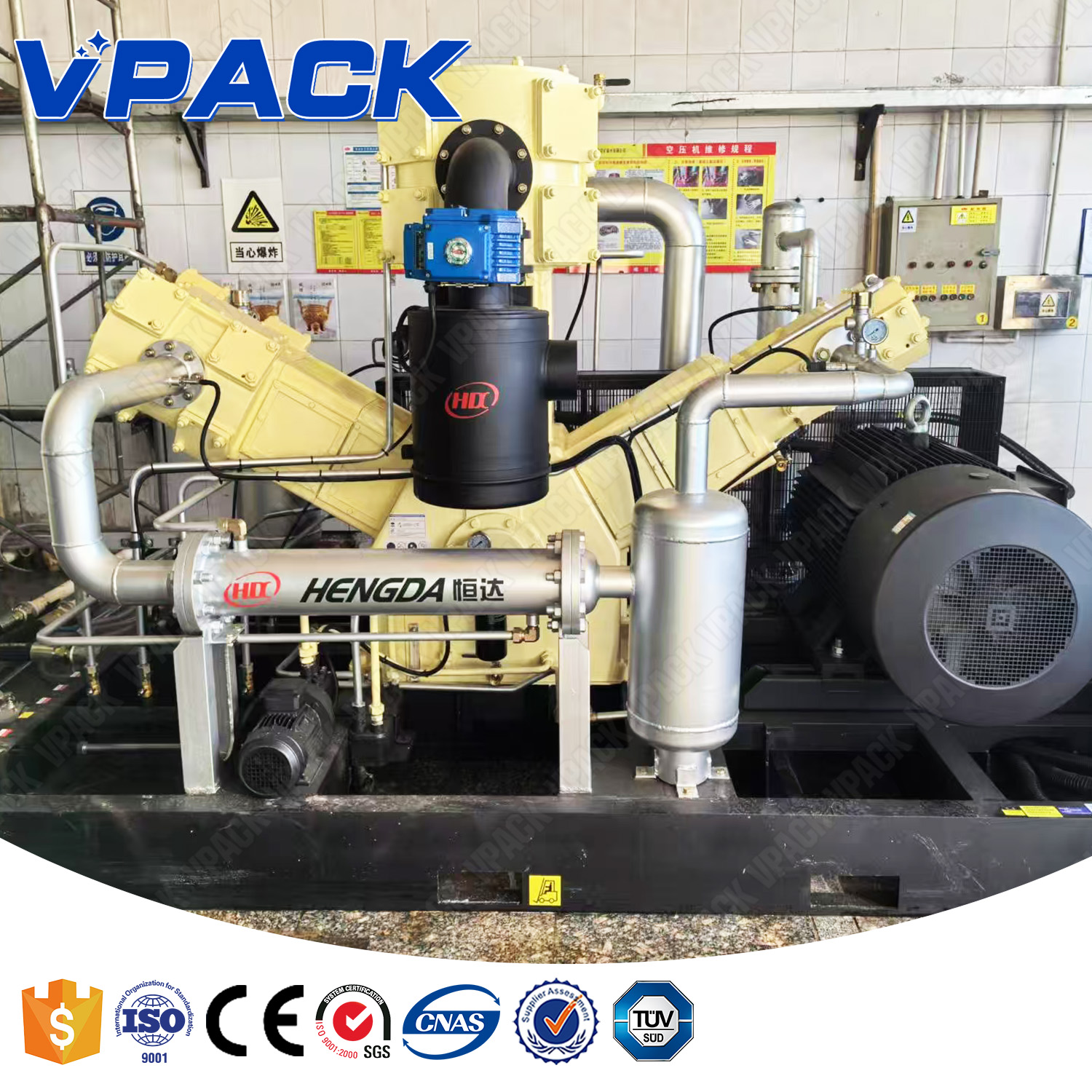

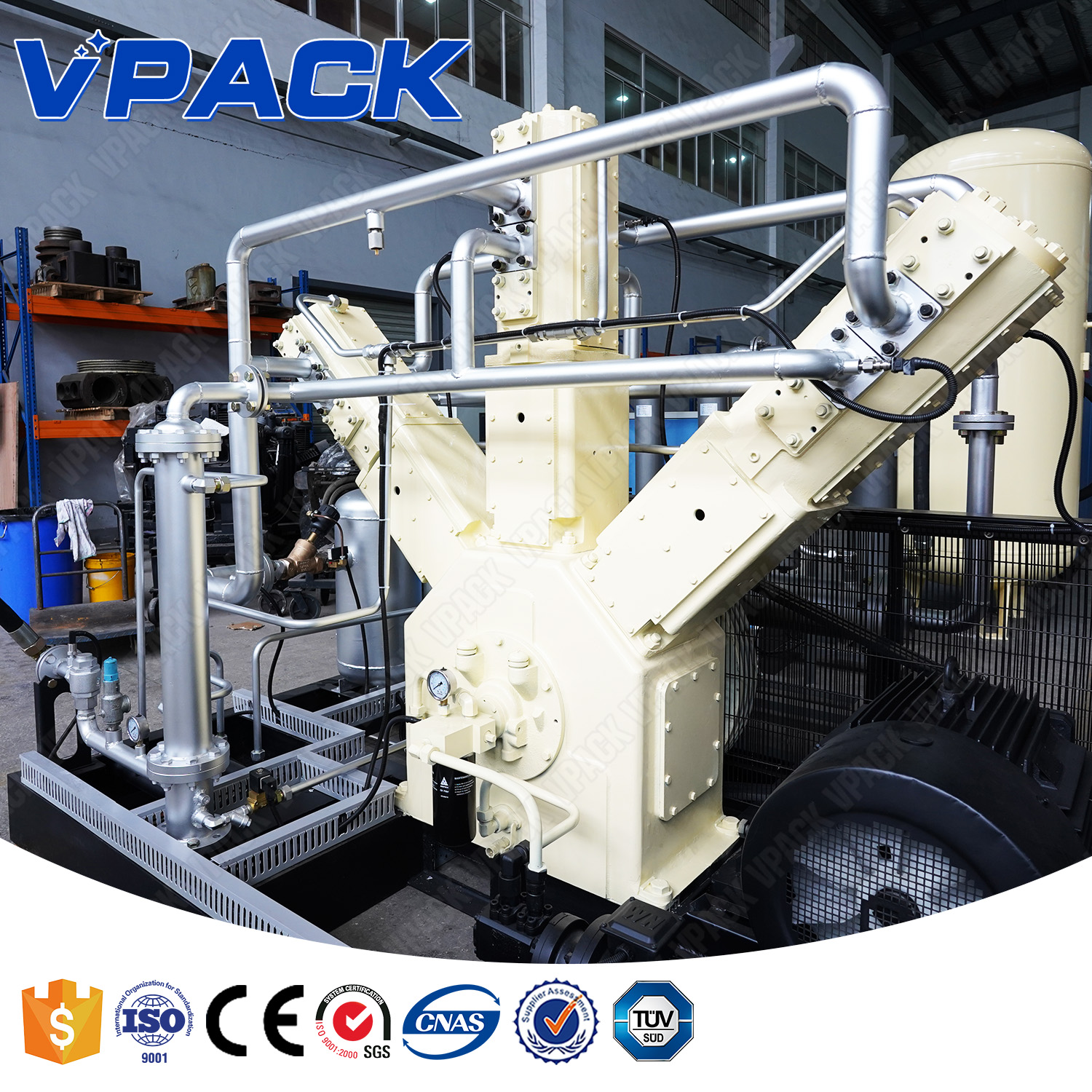

The unit adopts an integral skid-mounted design, with a heavy-duty welded base made of channel steel. It is equipped with a reinforced and widened integral frame, while the frame and intermediate body adopt a split structure. The compressor is an angle-type, three-row, three-cylinder model; it shares a single crank throw, which ensures the balance of inertia force and inertia moment, uniform distribution of piston force, and stable operation.

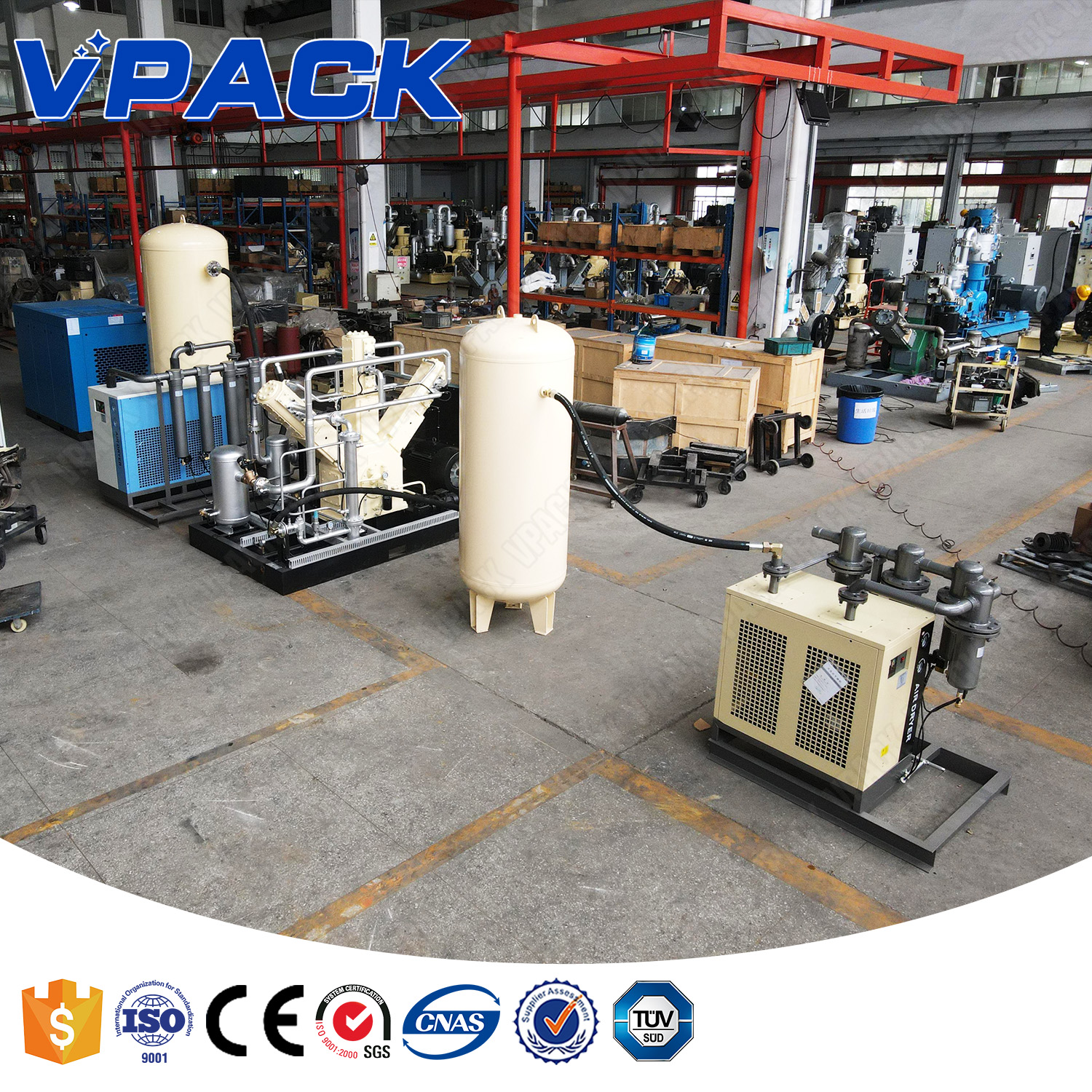

The whole unit is a reciprocating piston compressor with three-stage compression, featuring stable operation, low vibration and low noise. It adopts high-efficiency V-belt drive. The entire unit is installed on the same skid frame, boasting a compact overall design, small size and light weight.
