Item | Design Parameter |
Empty Bottle Filling&Disinfection Conditions | Disinfectant Solution(Prepared and recycled) | ≥10 seconds |
Sterile Water | ≥3 seconds |
Draining | ≥3.5 seconds |
Bottle Cap Rinsing Conditions | Disinfectant:15s;Sterile Water:5s;Sterile Air:2s |
Type of Disinfectant Solution | To be determined(TBD) |
Filling Temperature | Cold Chain |
Bottle Mouth Rinsing Conditions | Sterile Water |
Material Preparation Process | Sterilization Temperature | 75℃or≤137℃(To be determined/TBD) |
Sterilization Temperature Control Precision | ±1℃ |
Holding Time | 5s,10s,15s(To be determined/TBD) |
Outlet Temperature | ≤10℃(Adjustable) |
Outlet Temperature Control Precision | ±1℃ |
Final Heat Transfer Medium | Ice Water |
Others | The feed liquid(materials,water,etc.)in direct contact with the equipment must not contain chloride ions |
For products containing chloride ions,the heat exchanger supplier does not guarantee the service life of the plates and does not provide warranty for the heat exchanger |
Sterile Water Preparation Process | Sterile Water Heating Method | Plate Heat Exchanger(Steam) |
Sterilization Time | 125℃,30 seconds |
Outlet Temperature | 35℃ |
Final Heat Transfer Medium | 32℃Cooling Tower Water |
CIP(Clean In Place) | Acid,Alkali |
SIP(Sterilization In Place) | 120℃Hot Water,30 minutes |
Filling Method | Non-contact Flow Meter Filling |
Sterile Buffer Tank Capacity | 8m³ |
CIP Process(Clean In Place) | Cleaning Solution Heating Method | Tubular Heat Exchanger(Steam) |
Quantity and Type of Cleaning Solution Storage Tanks | 3-tank type:Acid Tank+Alkali Tank+Clean Water Tank |
Automatic Control Level | Automatic Control |
Filling Machine Cleaning and Disinfection Process | CIP(Clean In Place) | Acid,Alkali,Water |
COP(Clean Out of Place) | Acid Foam,Alkali Foam,Water |
SIP(Sterilization In Place) | Steam-Sterile Air,Disinfectant-Sterile Water |
SOP(Standard Operating Procedure) | Disinfectant-Sterile Water |
Air Purification Process | Filling Machine Operation Room | C级（GMP） |
Minimum Cleanliness Class(Static | Disinfection Area of Empty Cap Sterilizer | C级（GMP） |
Rinsing,Purging and Cap Dropping Area of Empty Cap Sterilizer | C级（GMP） |
Filling Machine Disinfection Area and Bottle Outlet Buffer Zone | A级（GMP） |
Filling Machine Rinsing,Filling and Capping Area | C级（GMP） |
(Sterile Isolation Chamber Design) | A级（GMP） |
Sterile Air Preparation Process | Filtration by Bacteria-Removing Filter;SIP with Sterile Steam |
Sterilization Effect of Bottles and Caps | ＞3-4log |

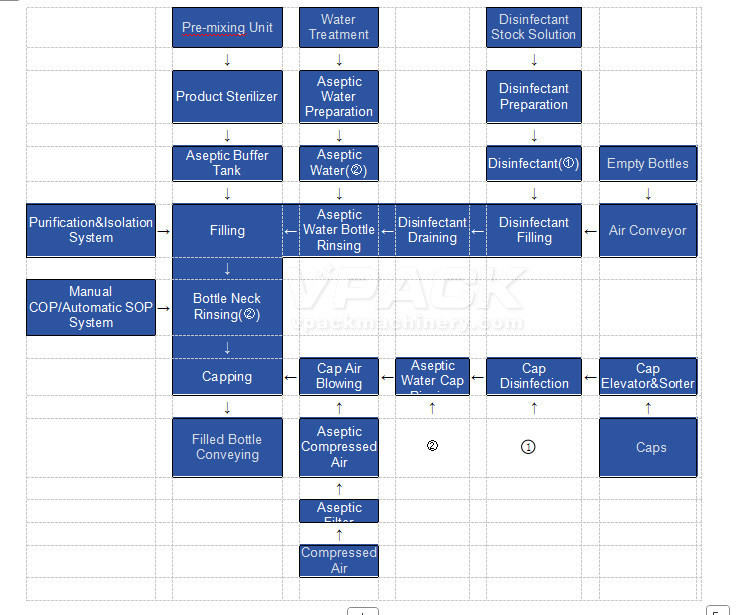

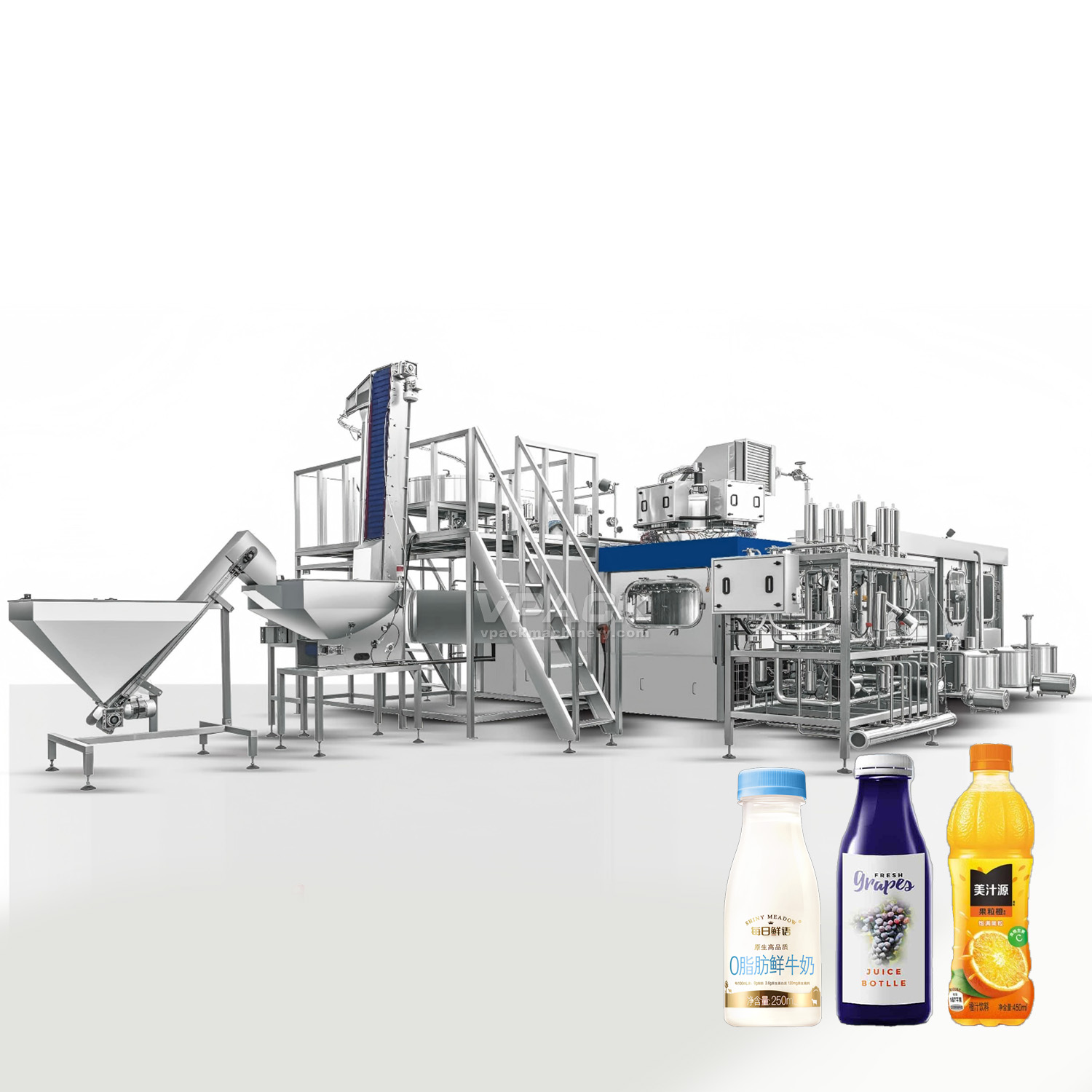

Model：GDXGF14-24-24-24-8
