Model | PM-150 |
capacity | 6000 |
Label type | φ50-97mm |
Bottle diameter | φ50-97mm |
Sleeve length | 40-150mm |
Label thickness | ≧0.035mm |
Label material | PVC/PET |
Main power | 2.5KW(380V,50HZ) |
Diemsion | 2440*890*2200mm |
Weight | 650KG |
Working principle:
1.The machine is made of stainless steel and high quality of aluminum alloy, the reasonable,
intact frame, it is easy to adjust.
2.The feet bolt is not needed, easy to move, suitable for different place.

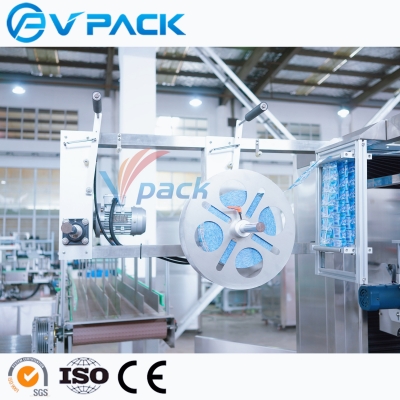

3.The Shrinkable film roll with adjustable locking gear, can be adjusted according to different
roller 5”～10”

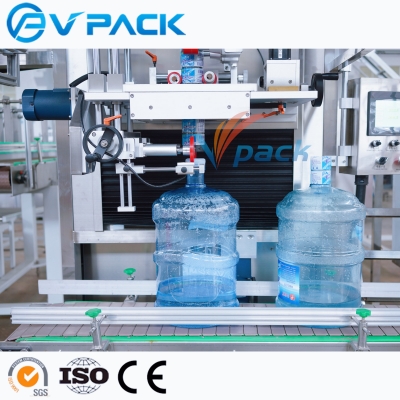

4.The machine can supply for square bottle and round bottle.
5.Without tools, the driven machinery can be adjusted to meet square and round shape bottle.

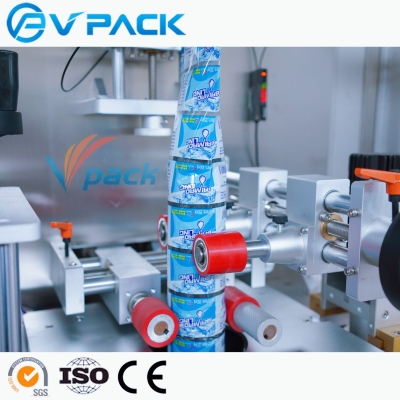

6.Particular inserting label ways, i.e. pressing inserting label, it is reasonable and convenient.
7.Full automatic feeder, the flat shrinking and tension are adjusted together.
8. It is assured to low error that there is inspection of rolling label cut.
9. Particular blade design, blade base can be change by free, changing blade quickly and conveniently.

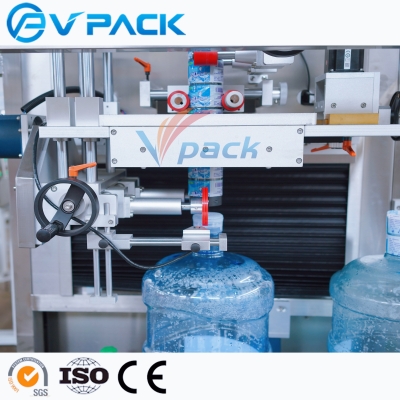

10. It is easy to change the central clamping device without any tools.
11.Oriental rolling label device can be lift synchronal.
12.The separating bottle screw, oriental belt and conveyor are adjusted synchronal; It is easy and quick to do.
13.Adopting ANCHUAN Servo motor made in Japan and sensitive photo electricity, to insure the precision
of cutting label.

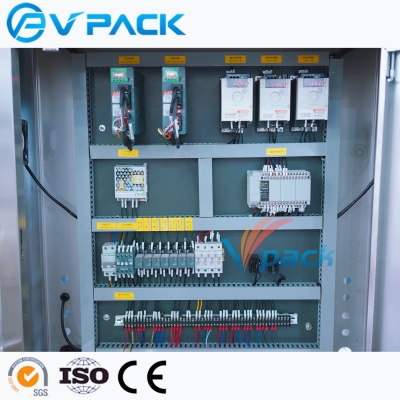

14. Stainless steel electric controller, adopting Mitsubishi PLC made in Japan.

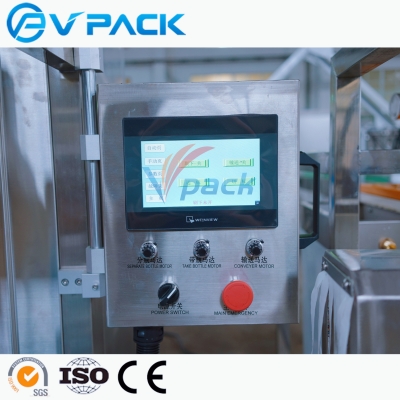

15.Adopting advantaged man-machine automatic controlling technology, main component adopts famous brand.
16.SS electricity control box, adopt Japan Mitsubishi PLC.
