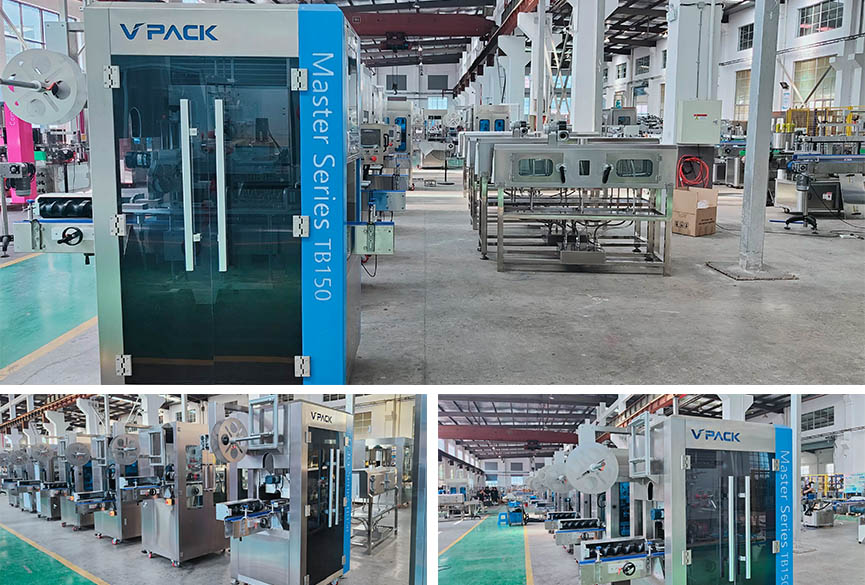

This machine adopts international advanced technology;cover the circle label on the pet bottle.And then hot shrinking to fix on the position which bottle body is designed. This machine's structure is compact,and suitable for the production line of different direction and different height. The machinery part adopts combination designing of modularization,and makes the machine resonable.The height adjustment adopts motor fluctuating;it is convenient to replace the material.The special cutter head designing,make the film-rolling cut more correct and reliable.

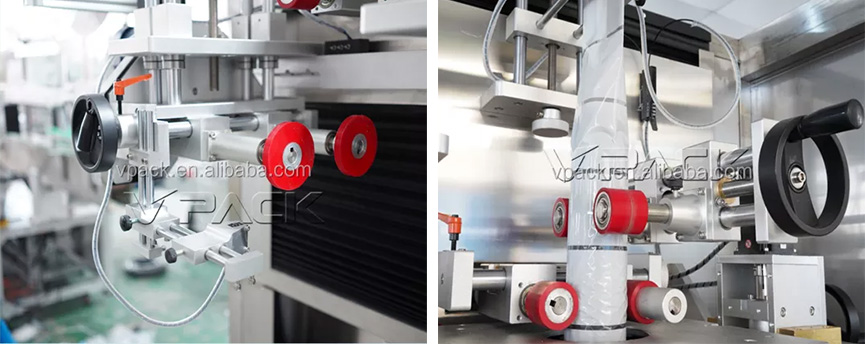

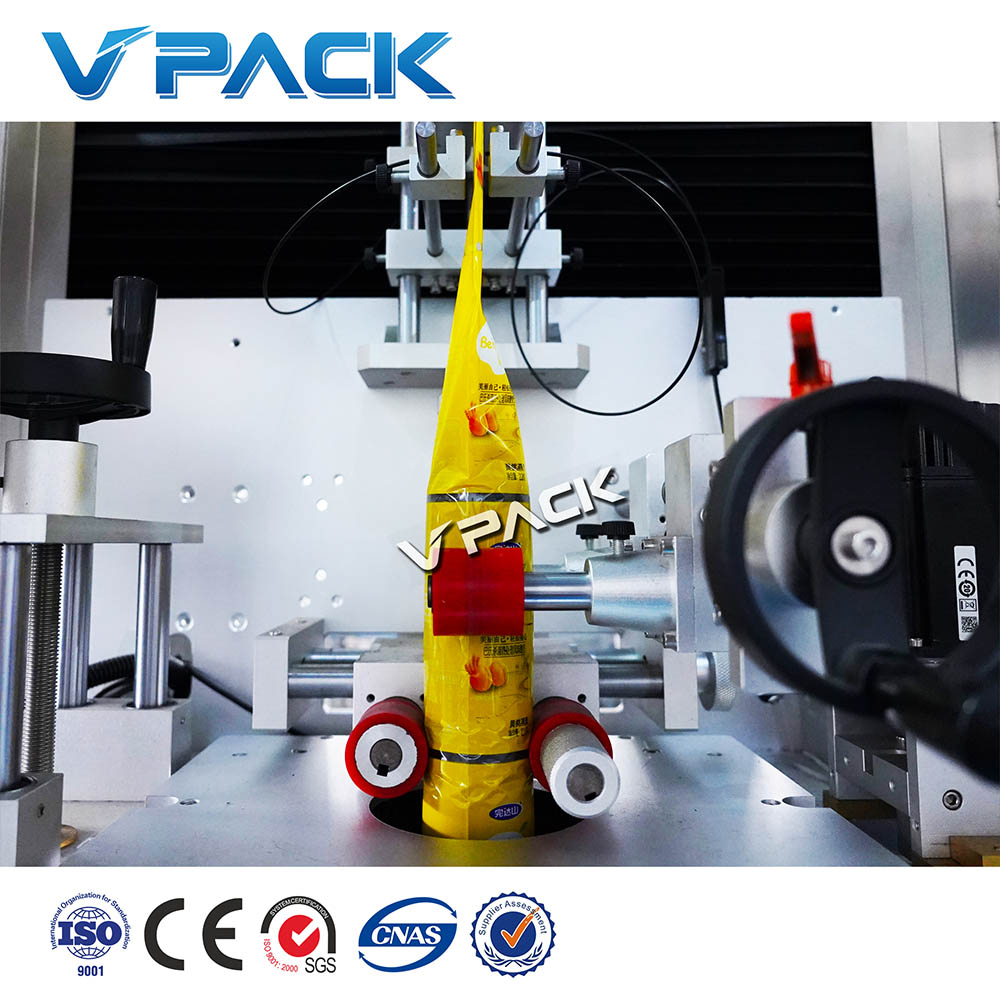

Cutter head unit The new style cutting knife drived by servo motor, with high speed, more stable and precise, shrink perfectively. Synchronous locating device enables the tolerable error to ±1mm.Unit cutter head plane design in China which apply to the container of ∮30mm—∮130mm.You never need to change or debug it. Cutter head original transducer is inside the cutter head and when you take down cutter head, you donot need to correct the synchronous belt. It also has unique light touch human-machine screen, that means,auto search original location as well as safety and convenience which is ahead of other congener products. The new design of cutter adopt step motor with high speed, stable and exact movement, trim cut place and perfect shrink. Compatible with the label synchronous location structure, the error of cutting place is within 1mm. Label feeding unit It adopt double material shelf which enable the change of label more convenient and fast. There is label checking photoelectricity and when there is no material, it will stop automatically and give alarm light and also display on the touch screen. It adopts rotary potentiometer which enable the label feeding stable and fluent and avoid the error label length, label block and other problem when label feeding servo convey the label.

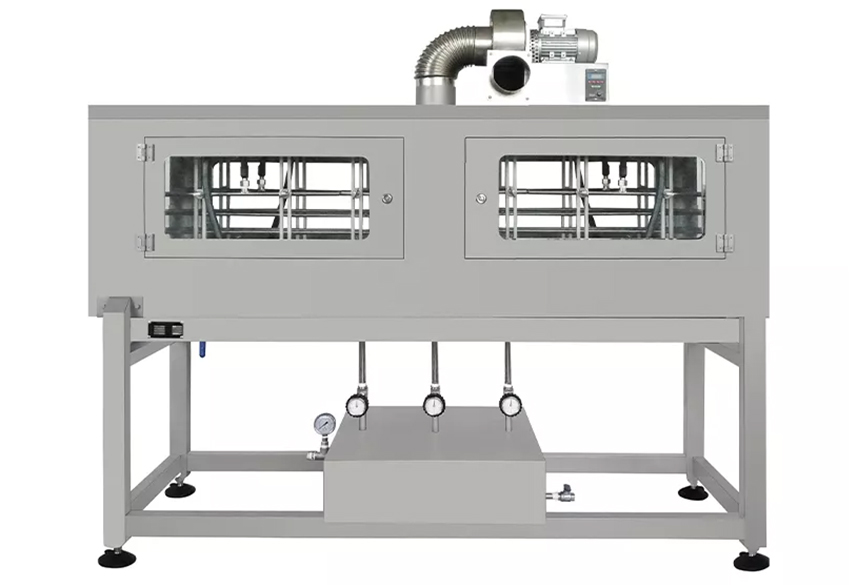

New steam shrinking tunnel The new style steam shrink tunnel improve the efficiency highly. The adjustment and maintain is convenient, the shrink is in order. The spout of steam use the separation style which make the tunnel smooth. The spout mouth is divided into four parts and the height ,place and quantity of steam of every part can be adjusted in order to make the shrink effect perfect .The low pressure steam bag use the seamless steel tube design and every connect tube use stainless steel soft tube ,so the disassembly and fixing is very convenient. The whole machine is made of stainless steel, so it is heat preservation and save energy sources. Besides, it accord with the international safety standard. The stainless steel plane at the bottom can condensate water and drainage them and working environment cannot be influenced. There are two eye window in front and at the back of the box body. The waterproof design of the whole machine is made of stainless steel which makes the operation and maintain convenient.
