Summary

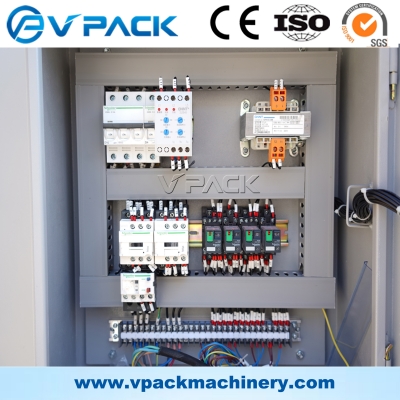

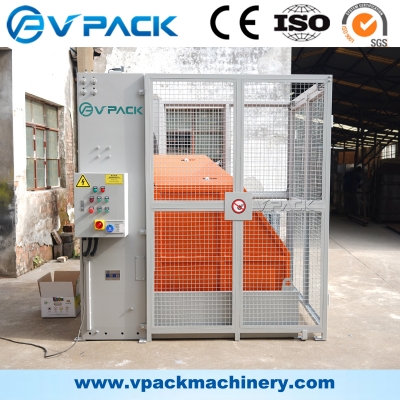

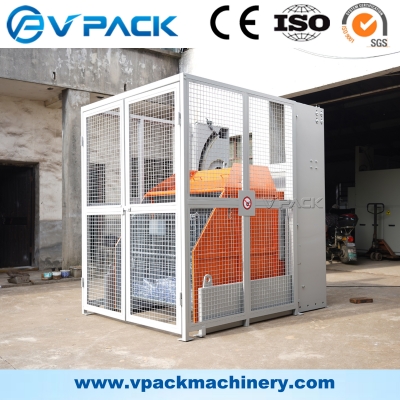

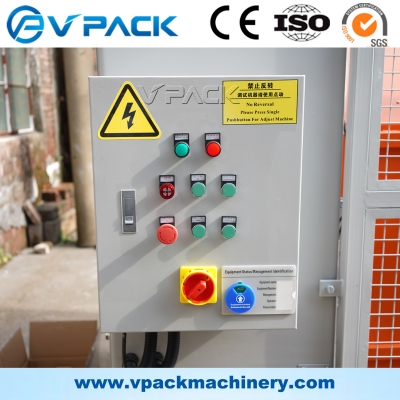

Lt series hoist is mainly composed of frame, hopper, chain transmission system, protective fence, electronic control system and so on.
Suitable for pet container production line bottle embryo lifting, dump. It can also be used for lifting and unloading of bulk materials with a total weight of not more than 500 kg and a volume of not more than 1 cubic. This machine has the advantages of simple operation, convenient use, low power consumption, no pollution and so on.
Main technical parameters
Input power supply ：380V three-phase four-wire 50HZ (60HZ) , The lifting weight shall not exceed 500 kg.
Model parameter | LT 1300 | LT 2100 |
power of motor (KW) | 1.5 | 1.5 |
hoisting height (mm) | 1100 | 2100 |
hoisting speed (mm) | 37/43 | 43/49 |
Size of hopper (mm) | 1240×1300×1550 | 1200×1240×1550 |
Overall dimension of turnover box (mm) | 1200×1220×1230 | 1100×1100×1100 |
Overall dimensions of the whole machine L×W×Hmm | 2250×1900×2200 | 2250×1800×2760 |
Maximum height of machine when working. H1mm | 3350 | 4000 |
