After filling with liquid nitrogen,the internal pressure of PET bottle or can be monitored in real
time.and the pressure after filling with other steam can be quickly detected and eliminated and
acousto-optic alarm can be provided.the user can monitor whether the front-end quipment is
running normally at any time.stop the unqualified products flowing to the market and cause
adverse effects.when the continuous unqualified products are eliminated.they can find and warn
the front-end equipment problems in time.If necessary.the function of front end equipment can
be automatically stopped. and the loss can be reduced.In addition.It is more convenient for the user
to debug the injection quantity of the liquid nitrogen machine with this detector.and can judge
wehter the interneal pressure is up to the standard without destroying the container.

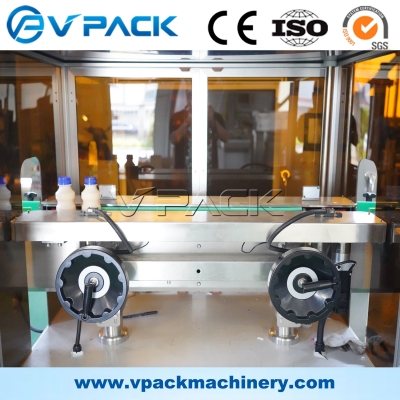

The product feature:SIEMENS PLC and high-precision dynamic tracking sensors are used in this
detection system.Sensors can detect tiny pressure change data.Through PLC calculation.We can
give timely judement results.and achieve real-time monitoring of each monitored product.
The product parameter:
Rated input voltage:220VAC-50Hz+/-10%
Electricty:<5A
Humidity : 0~100%
Working altitude :< 6050mm
Noise: persistent <78dB(A)
Weight: 150kg
Capacity: speed 50~300 cans per min
Working condition:
compressed air to supply the removal of the cylinder work.The need for 8mm diameter pipe.Pressure
range of 0.4~0.6 Mpa.
