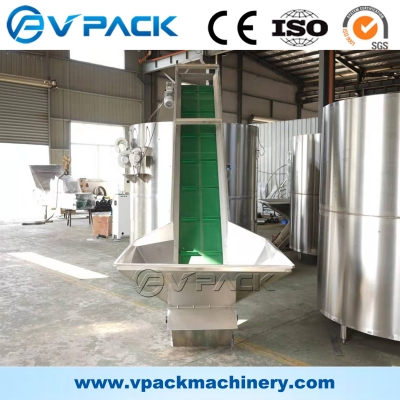

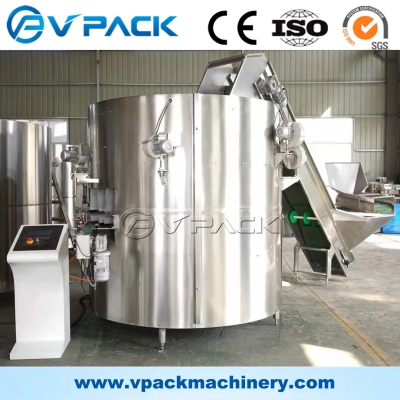

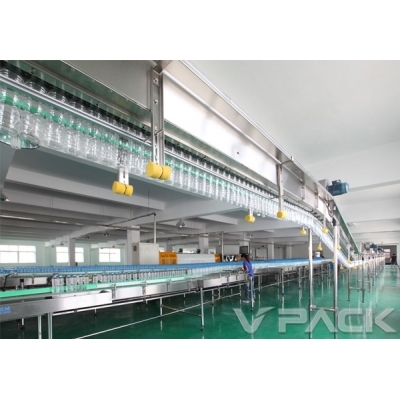

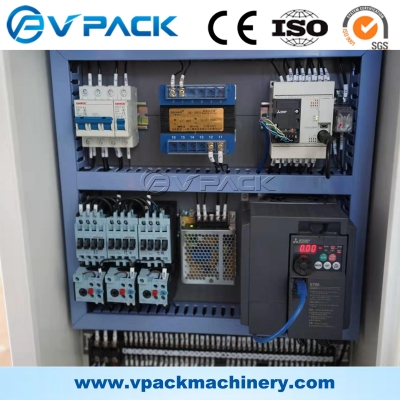

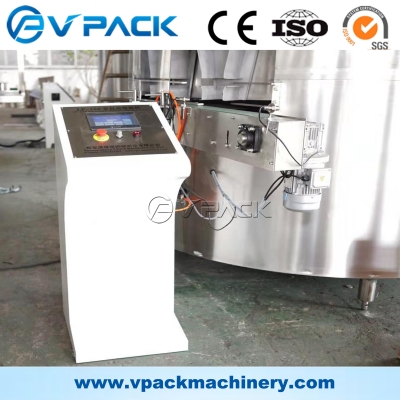

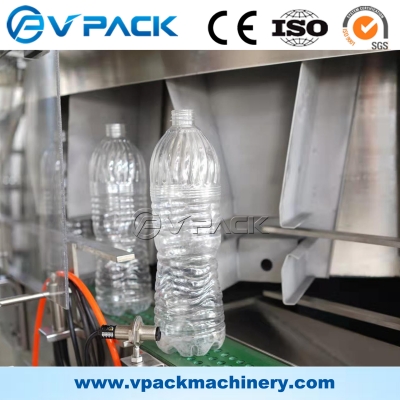

The machine is used in ordering disordered polyester bottle.The disordered bottles are carried into the sorting bottle section of the ordering bottle machine.With the help of the pushing force of the rotating disk.The bottle enter their position.With the function of the turning bottle device and the air-flow.The bottles are ordered into bottle mouth-up-position and are carried into next process with the air-transfer type conveyoring bottle system.The machine adopts PLC computer-control.Frequency control to adjust its production capacity.It has a screen to automatically screen out non-standard bottles.
Technical parameter
Model LP-150 LP-250 LP-350
Production capacity (b/h) 8000-9000 12000-15000 18000-21000
Air source pressure（Mpa） 0.7 0.7 0.7
Air consumption (m3/min) 0.5 0.5 0.5
Suitable bottle (ml) 250-1800 250-1800 250-1800
Main motor power (kw) 2.2 3.0 5.5
Weight (kg) 3500 4200 5200
